Intelligent Cockpit

Product size

7”~48”（200*100mm~1350*350mm）TFT-LCD/AMOLED

Appearance

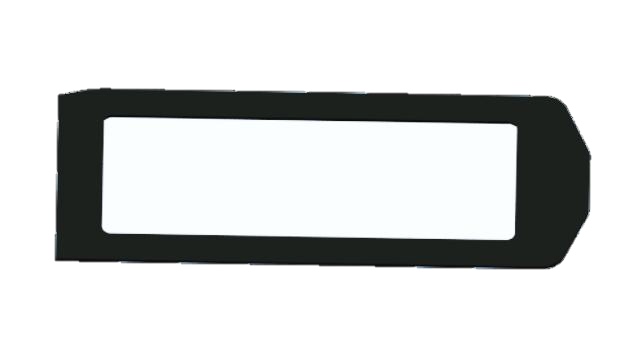

Flat (single/multi screen)

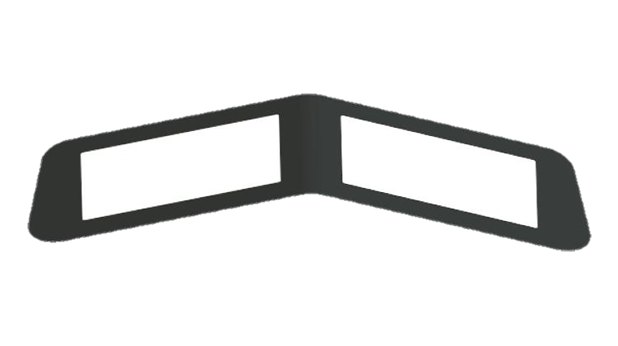

V-type (160 °~172 °) dual screen

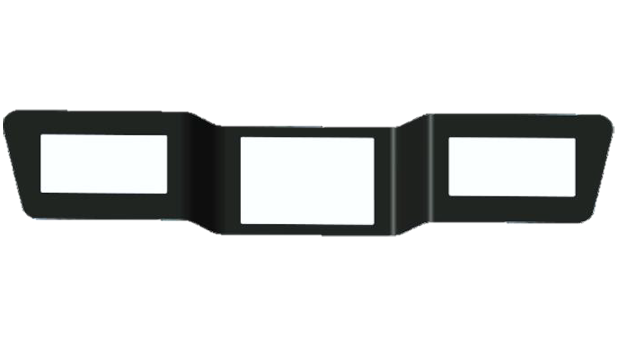

Concave (triple screen)

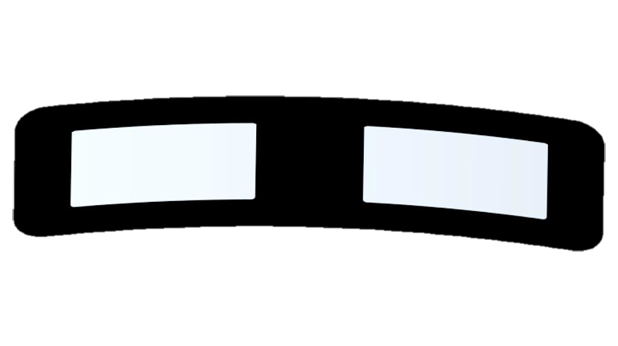

C-type (full screen/dual connection)

TECHNICAL FEATURES

① Integrated black ② Anti reflection ③ OCR-Si/OCA-Si full bonding process (fully automated equipment) ④ Inverted backlight process

Glass cover plate

Thickness 0.55-6mm, hardness 7H, AG haze~7%, AF droplet angle ≥ 110 °, AR SCI ≤ 6%

Touch performance

Common structures G+G, GF, GF2, GFF; Service life ≥ 50 million times; Or Touch cell

reliability

RA   6090 500~1,000 Hrs
